The JL Audio AP Series Amplifiers are a family of ultra-compact, high-performance mobile amplifiers engineered for installations where available space is limited and environmental conditions are exceptionally demanding. Designed for marine, motorcycle, and powersports applications, the amplifiers are fully sealed to an IP67 rating, providing complete protection against dust ingress and resistance to water immersion up to one meter.
The product family is available in monoblock, four-channel, and six-channel configurations, delivering installation flexibility without compromising performance.
A key design objective was to simplify installation and system tuning. The user interface is positioned on the front face for easy access after installation, allowing installers to configure operating parameters without removing the amplifier. A high-contrast digital display provides real-time system information, including amplifier temperature and battery voltage, while JL Audio’s integrated Easy-Tune technology automatically calibrates the amplifier to the output level of the source unit, streamlining setup and reducing installation time.
Research revealed that these amplifiers are routinely exposed to severe vibration, impact, moisture, salt spray, mud, and extreme temperature fluctuations. The physical design was therefore developed as a protective enclosure first, while expressing the durability and performance expected from the JL Audio brand.

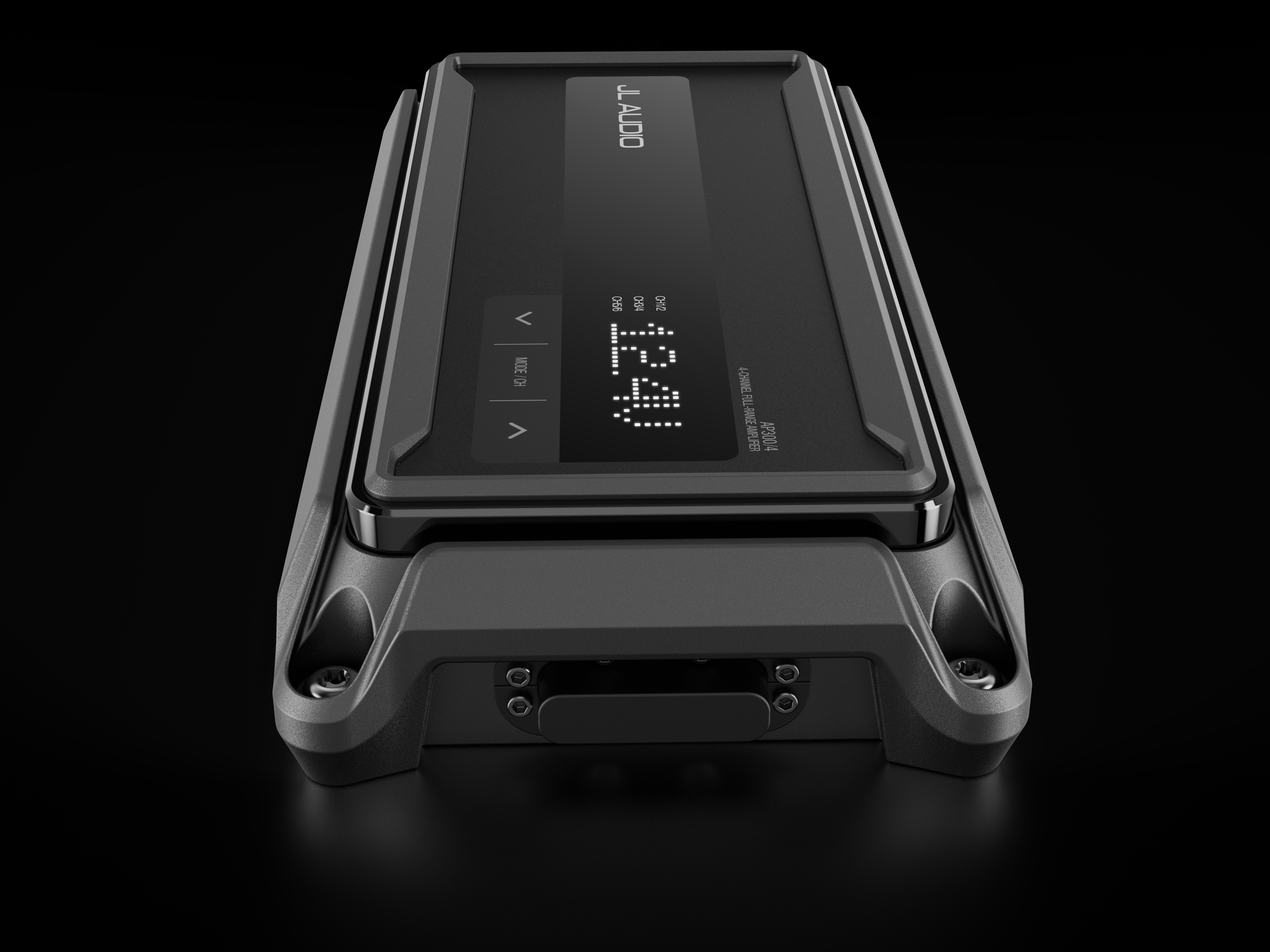

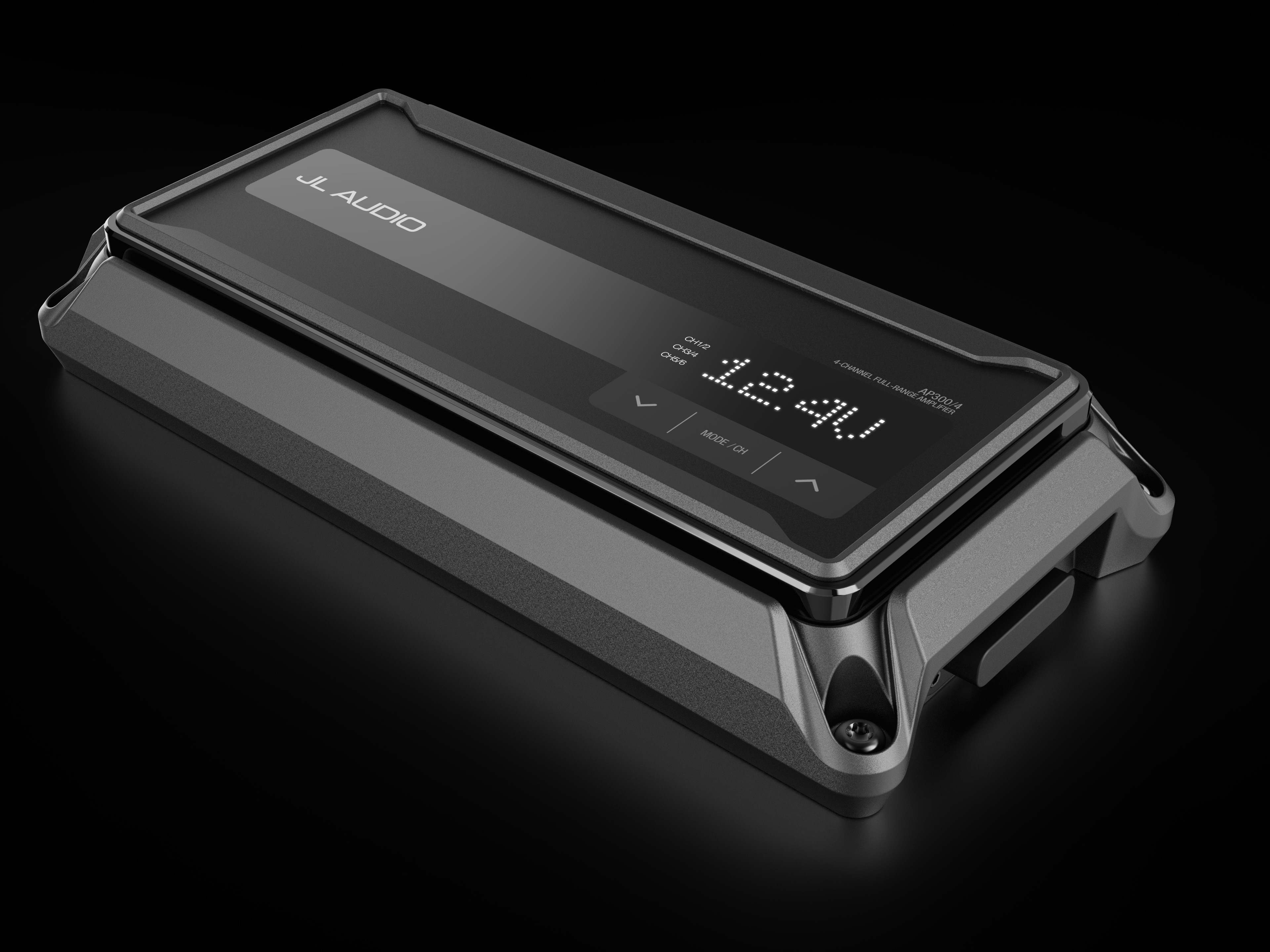

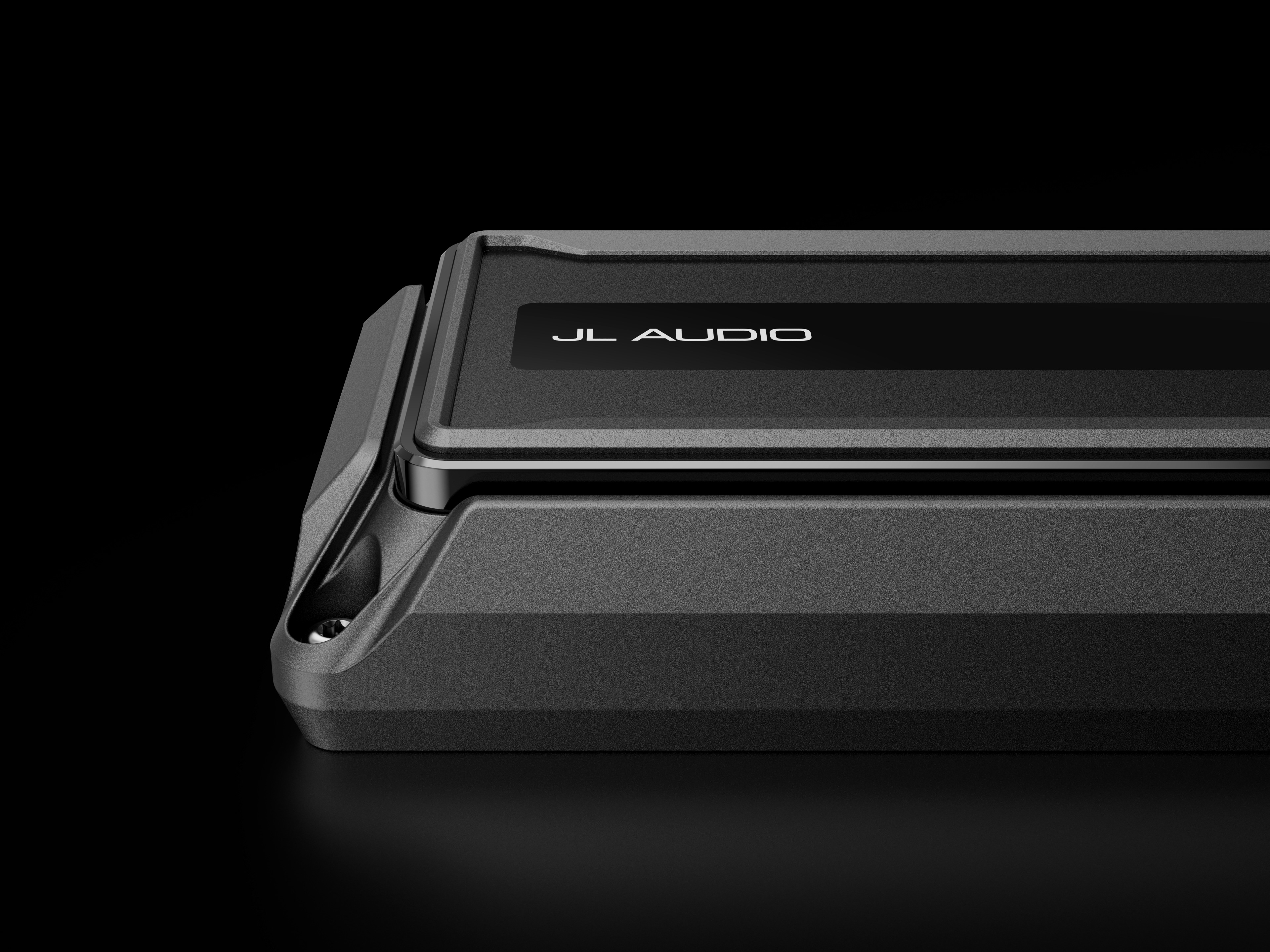

The housing is formed from a robust aluminum die casting engineered for exceptional structural integrity and efficient thermal management. Protective side panels were integrated into the form to create a visual impression of mechanical armor while simultaneously increasing surface area for improved heat dissipation. In critical locations, wall thickness exceeds one inch, providing substantial resistance to impact and long-term environmental abuse.

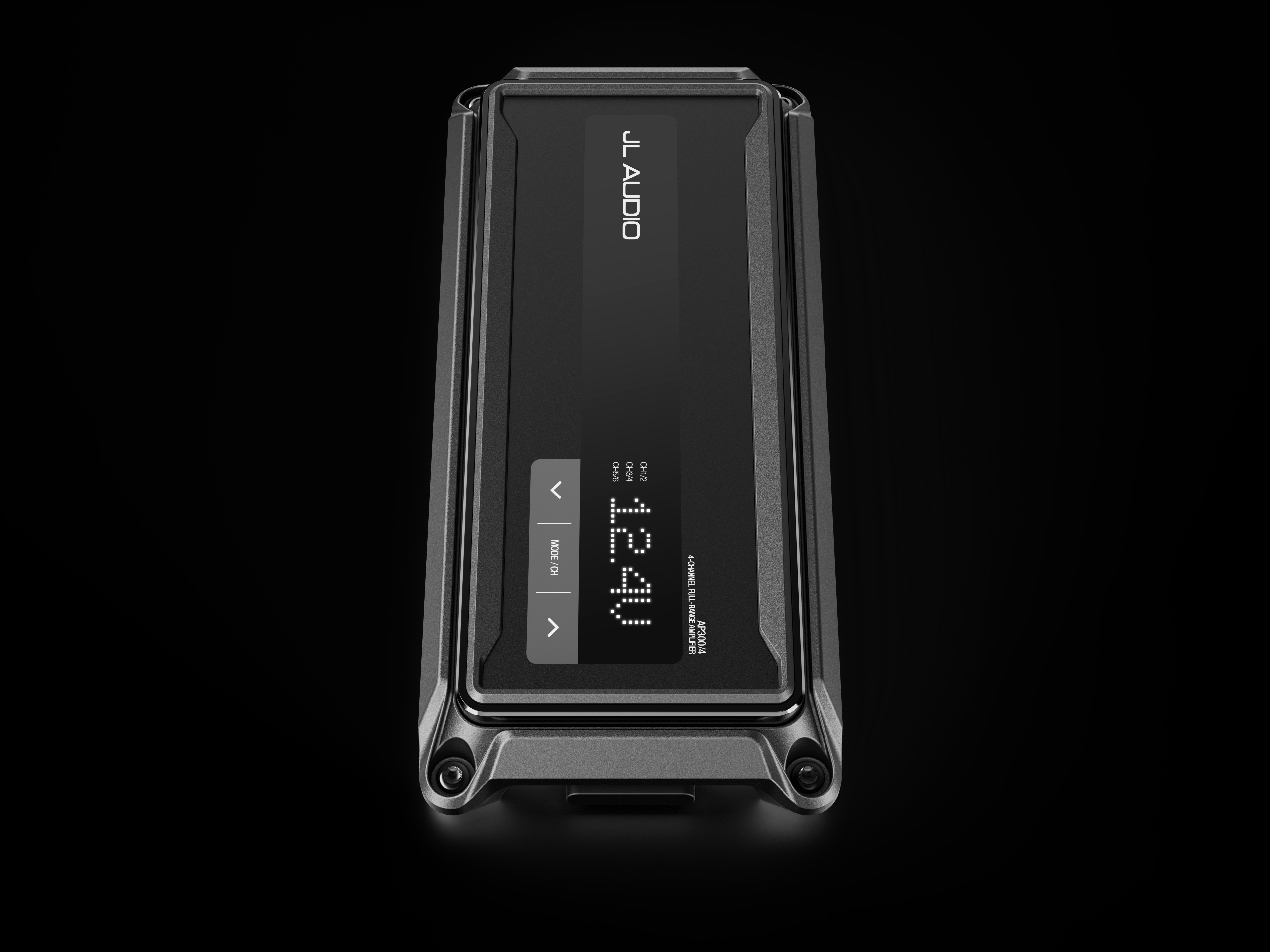

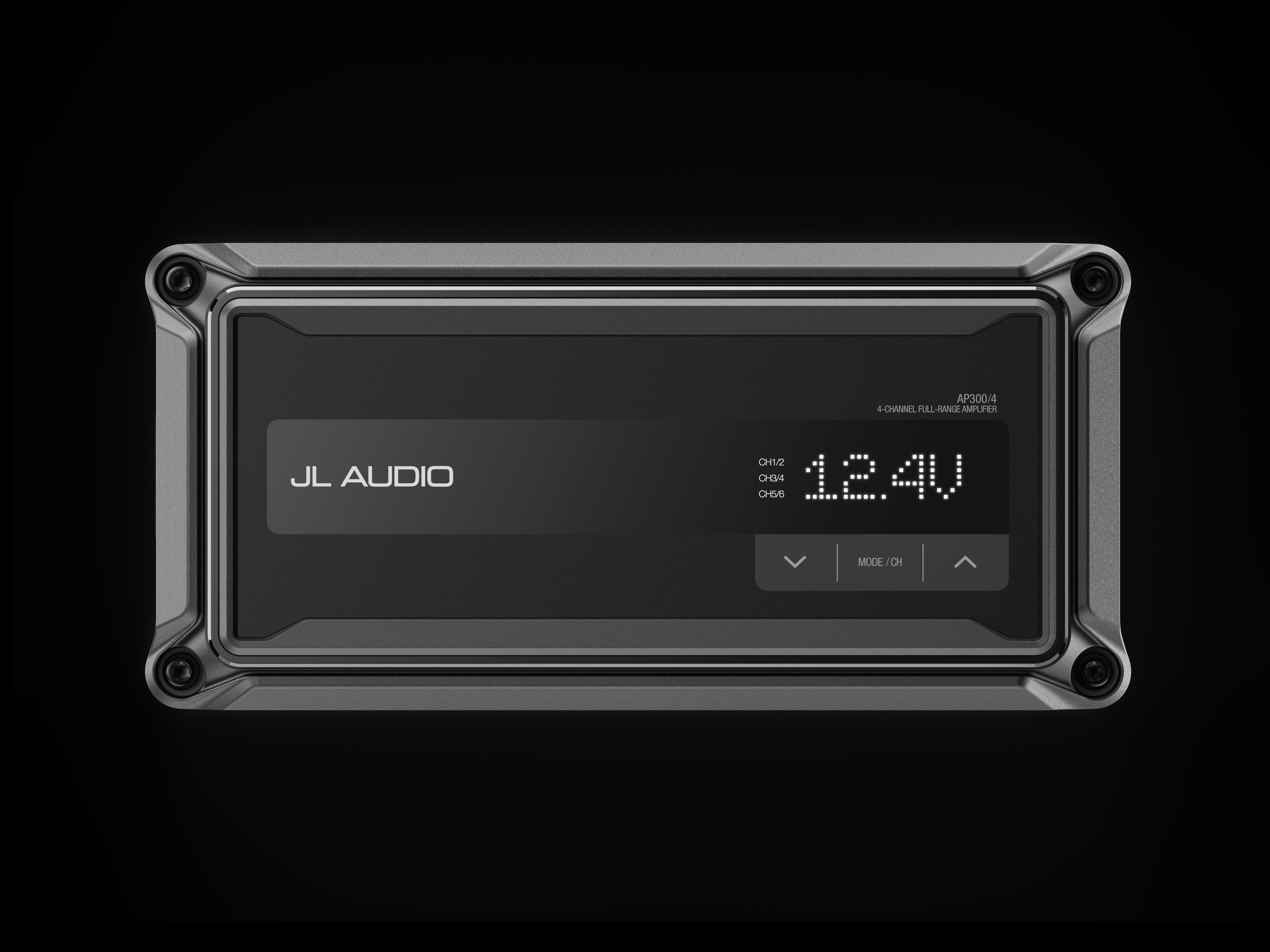

The display is recessed within a raised protective bezel that shields it from accidental impacts while visually framing the interface as the primary point of interaction. Electrical connections are deeply integrated into the housing to protect connectors and wiring from damage during installation and operation, resulting in a cleaner appearance and greater long-term reliability.
The mounting system was equally considered. Open-sided mounting feet provide unobstructed access for power drivers, allowing installers to fasten the amplifier quickly while minimizing the risk of tool contact with the housing. This seemingly simple detail significantly improves installation efficiency and helps preserve the visual quality of the product.
Every element of the amplifier was designed to communicate power, ruggedness and sophistication - an expression of engineered strength that establishes a distinctive design language for the AP Series of amplifiers, while reinforcing JL Audio’s reputation for uncompromising performance in the world’s most demanding mobile environments.
